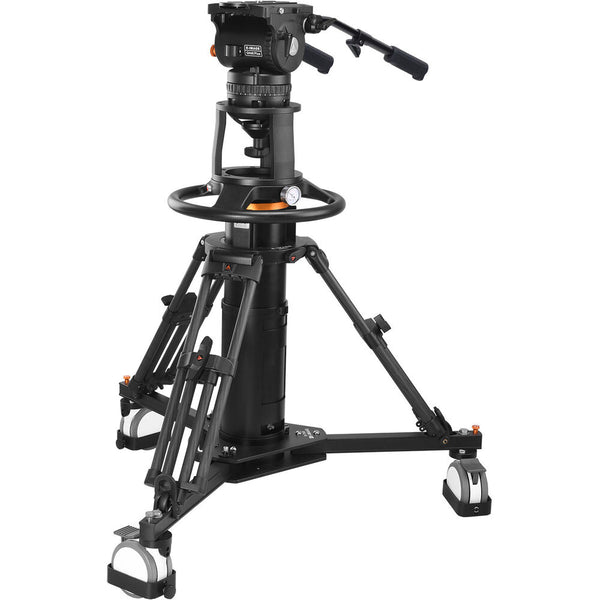

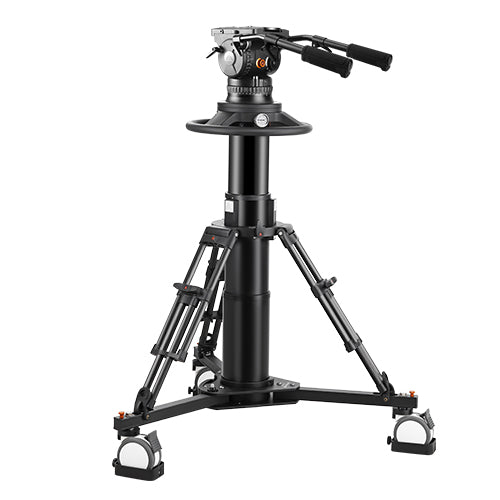

E-Image EP880XK Pneumatic Pedestal System Payload 40KG - EI-EP880XK

The EP880XK is an integrated two-stage pneumatic pedestal kit, provides more smooth drive system for both studio and location broadcast needs, consists of EIMAGE’s GH40 PLUS fluid head and EP880X pedestal. Its payload up to 40kg (88lbs) and working height adjustment from 124.5 cm to 187.0cm (49.1in-73.6in).

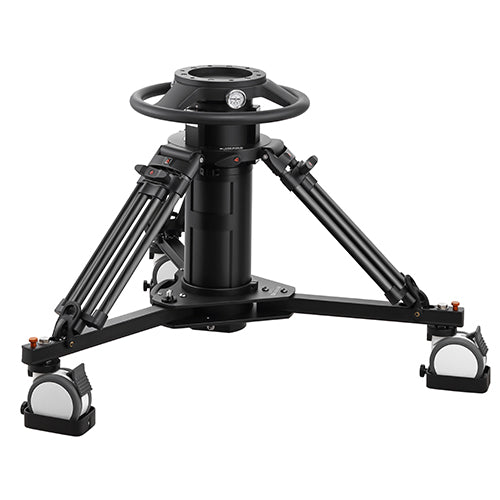

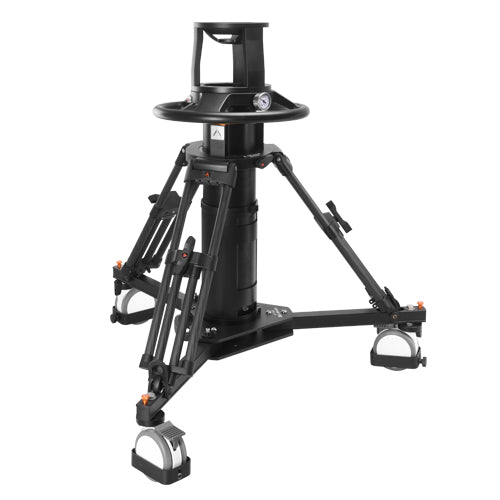

EP800X Pneumatic Pedestal Highlights:

Height Range: 78cm – 152cm (30.8" – 59.7") with 15” on-shot stroke
Adjustable Air Pressure System with built-in gauge and hand pump for manual tuning
Locking air valve and safety latch to prevent slippage during operation
Heavy-duty EI700B dolly with foot-operated wheel locks and six-position track locks
Integrated cable guards help protect critical equipment from snags and damage

Engineered for smooth vertical movement, the EP800X's pneumatic column delivers reliable elevation without backlash, letting you achieve professional, repeatable moves with ease.

GH40 PLUS Fluid Head Features:

Supports payloads up to 40kg (88.2 lb) – perfect for full-size studio camera rigs
150mm bowl fitting for perfect compatibility with the EP800X pedestal
Dual telescopic pan bars with sculpted grips for intuitive, fatigue-free operation
12-step pan and tilt drag settings for precision control in any shooting scenario
9-step counterbalance system plus fine-tune adjustment knob for dialled-in rig balance
Illuminated bubble level for fast, accurate setup – even in low-light studios
Accessory mounting points (1/4"-20 & 3/8"-16) for monitor arms or other add-ons

This professional-grade setup is ideal for multi-camera studio production environments where consistent framing, repeatability, and comfort are essential.

SPECIFICATIONS

Maximum Height	64.6" / 164.2 cm
Minimum Height	49.1" / 101.8 cm
Working Range	On-Shot Stroke: 15" / 38 cm
Head Attachment Fitting	150 mm Bowl
Tilt Range	-70 to 90°
Rotation & Tilt	12-Step Drag Adjustment Tilt Lock
Balance Plate	8.1" / 205 mm Sliding Range
Bubble Level	Built-In Illuminated
Casters	4.9" / 125 mm Diameter

Physical

Mounting	Side: 1x 3/8"-16 Female Thread Side: 2x 1/4"-20 Female Thread
Load Capacity	110.2 lb / 50 kg (Pedestal) 88.2 lb / 40 kg (Fluid Head) 59.5 lb / 27 kg (Fluid Head in Boost Mode)
Color	Black
Material of Construction	Carbon Fiber
Environmental Resistance	No
Dimensions	10.2 x 9.4" / 260 x 239 mm (Fluid Head)
Weight	82.5 lb / 37.4 kg (Pedestal) 19.4 lb / 8.8 kg (Fluid Head)
